Wilo Pumps UK Distributor

E.Bennett (Electrical) Ltd are proud to announce their partnership with pump manufacturer Wilo. Wilo Pumps are a truly global company with over 8000 employees. Founded in 1872 they are primarily a SMART solutions provider into-all the strategic business areas.

Wilo- SiBoost Smart (FC) Helix V

Your advantages

  • Heavy-duty system in accordance with DIN 1988 (EN 806)
  • 2 to 4 vertical Helix V series stainless steel high-pressure multistage centrifugal pumps switched in parallel
  • High-efficiency pump hydraulics
  • Pressure-loss optimised entire system
  • Control device SC, communication-capable for the monitoring of the system, LC display, simple navigation and adjustment via rotary knob without or with frequency converter for stepless control of the base-load pum


    Highly efficient water-supply unit ready for connection (non self-priming) with 2 to 4 vertically arranged stainless steel high-pressure multistage centrifugal pumps in glanded version from the Helix V series switched in parallel, including Smart Controller SC (available with and without frequency converter FC)

    Technical data

    • Mains connection 3~230 V/400 V ±10 %, 50 Hz
    • Max. fluid temperature 50 °C (70 °C optional)
    • Max. ambient temperature of 40 °C
    • Operating pressure 16 bar (25 bar optional)
    • Inlet pressure 10 bar
    • Nominal connection diameters on discharge side R 1½ – DN 200
    • Nominal connection diameter on the intake side R 1½” – DN 200
    • Rated speed 2850 rpm
    • Protection class IP54 (SC control device)
    • Fuse protection A on mains side, AC 3 according to motor power and EVU regulations
    • Approved fluids (other fluids on request): Note regarding fluids: Approved fluids are generally waters which do not attack the materials used, neither chemically nor mechanically, and do not contain any abrasive or long-fibre constituents. System in accordance with DIN 1988 (EN 806)
      • Drinking water and hot water
      • Cooling water
      • Firefighting water

Contact for Competitive Pricing


Download Wilo SiBoost Smart Brochure

Wilo-Drain LPC

Your advantages

  • Long service life thanks to its robust construction in grey cast iron
  • Easy maintenance due to integrated inspection opening
  • Flexible application


Self-priming drainage pump with standard motor for dry well installatio

Technical data

  • Mains connection: 3~400 V, 50 Hz
  • Protection class: IP55
  • Fluid temperature: 3 … 80 °C
  • Suction and pressure connection:
    • LPC 40: R 1½
    • LPC 50: G 2
    • LPC 80: G 3
  • Max. suction head: 7.5 m

Contact Information for Datasheets

Download Wilo Drain LPC Brochure

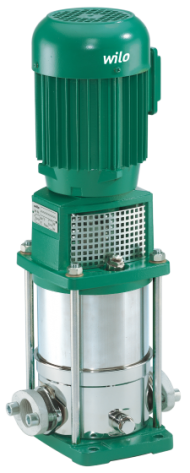

Wilo - Multivert MVI

Your advantages

  • Corrosion-resistant impellers, diffusors and stage housings
  • Drinking water approval for all components that come in contact with the fluid (EPDM version)


Non-self-priming, multistage high-pressure centrifugal pump in vertical design with in-line connections.

Technical data

  • Electrical connection:
    • 3~400 V (±10 %), 50 Hz
    • ≤ 4 kW 230 V/ 400 V; Δ/Y
    • > 4 kW 400 V/ 690 V; Δ/Y
  • Fluid temperature of -15 to +120 °C (with EPDM), (-15 to +90 °C with FKM)
  • Operating pressure max. 16/25 bar
  • Max. inlet pressure of 10 bar
  • Protection class IP 55
  • Flange connections:
  • MVI 70../95.. PN 16/PN 25: Round flange (DN 100)

Contact Information


Download Wilo Multivert MVI Brochure
